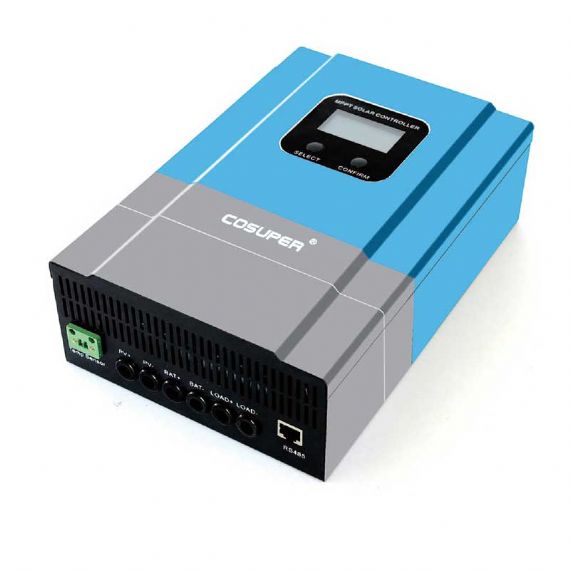

40A / 50A / 60A MPPT Solar Regulator

Features

CMPD SERIES MAIN FEATURES

Battery Type

These MPPT units provide the availability of set charge voltage by users. Therefore, AGM, Gel, and Open Lead acid are all workable with these MPPT solar chargers.

Display & Communication

With the LCD display, users are able to read all the parameters when it works. RS485 communication is available to offer
communication protocol to convenient user's integrated management and secondary development.

DC Load Voltage

MODELS	CMP20-DL	CMP30-DL	CMP40-DL	CMP50-DL	CMP60-DL
SPECIFICATION
System Voltage	12V, 24V or 48V Auto work
MAX. PV input Volt	150VDC
MAX. PV input power	12V-260watts; 24V-520watts; 48V-1040watt	12V-390watts; 24V-780watts; 48V-1560watt	12V-520watts; 24V-1040watts; 48V-2080watt	12V-650watts; 24V-1300watts; 48V-2600watt	12V-780 watts; 24V-1560watts; 48V-3120watt
MAX. Charge Current	20A	30A	40A	50A	60A
Charge Method	Three-stage charge
Low PV Voltage Protection	Battery voltage+3V
Over PV Voltage Protection	150VDC
DC Load Voltage	Same with battery voltage
MAX. DC Load Current	40Amp	40Amp	40Amp	60Amp	60Amp
ENVIRONMENT
Operating / Storage Temperature	-20℃ to +50℃ / - 40℃ to +70℃
GENERAL INFORMATION
Communication	RJ45 / RS485 / PC monitor/Wifi & APP	-	-	-	-
Weight	2.3 Kg	2.3 Kg	2.5 Kg	2.5 Kg	2.8 Kg
Warranty	36 months	-	-	-	-
IP Level	IP21	-	-	-	-
Coolling	Cooling Fan	-	-	-	-
Dimension(L×W×H)	24.0× 16.8× 6.6cm	24.0× 16.8× 6.6cm	24.0× 16.8× 6.6cm	27.0× 18.0× 8.5cm	27.0× 18.0× 8.5cm
Battery Type	Li FePO4 , AGM , GEL or Customized	-	-	-	-

Download PDF

Here is the 40A / 50A / 60A MPPT Solar Regulator product PDF, if you are interested in this product, you can download this PDF. If you have any doubts about this product, you can contact us.

View PDF

Here is the 40A / 50A / 60A MPPT Solar Regulator product PDF, if you are interested in this product, you can view this PDF online. If you have any doubts about this product, you can contact us.
