ES Series
Wall Mounted Lithium Battery

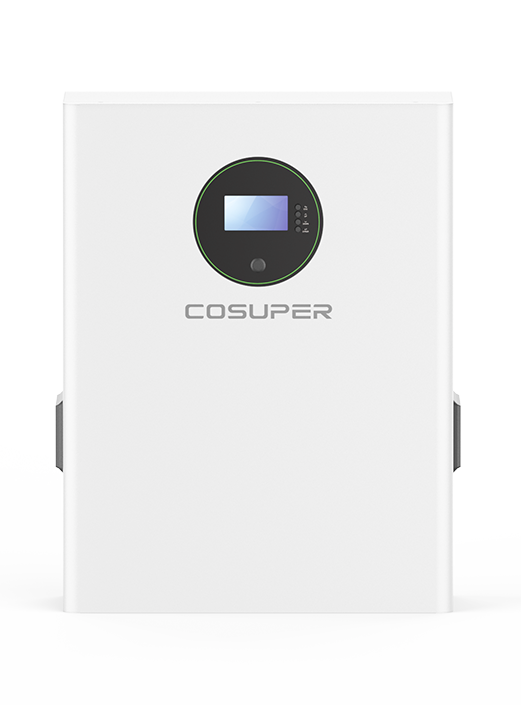

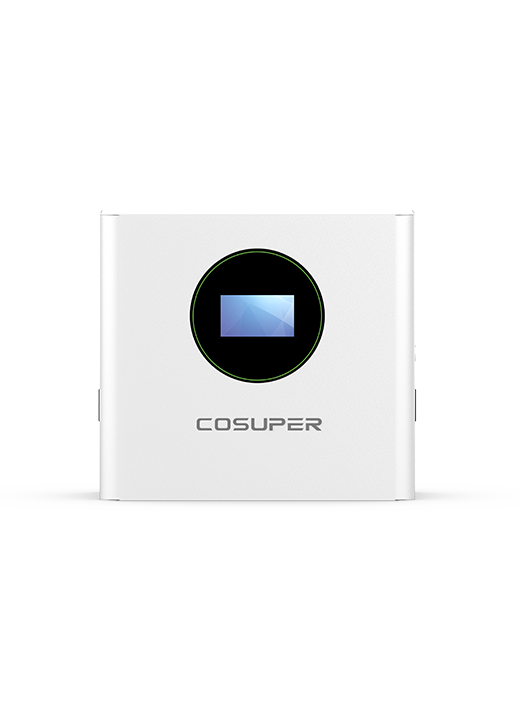

The ES Series wall-mounted lithium battery is a compact and safe LiFePO4 storage unit for residential energy systems. It supports up to 15 units in parallel, offers more than 6,000 cycles, and provides stable charge and discharge performance, making it suitable for home backup and solar energy storage.
Request a Quote
# #
ES Series

Advantages

01 High-density LiFePo4 battery
02 Supports up to 15 units in parallel
03 0.5C charging 1C discharging
04 ≥6000 cycles
05 Advanced BMS management
06 Compatible with mainstream inverters
ES Series

Technical Specifications

ES Series
ES2.56
Rated Voltage 25.6VDC
Rated Capacity 100
Rated Energy(Wh) 5120
Rated Charge Current@RT 50A
Rated Discharge Current@RT 200A
Communication CAN/RS485
IP level IP31/54
Dimension(unit) L*W*H(mm) 375*206.5*340
Weight (N.W.) 23kgs
ES2.56
Rated Voltage 25.6VDC
Rated Capacity 100
Rated Energy(Wh) 5120
Rated Charge Current@RT 50A
Rated Discharge Current@RT 100A
Communication CAN/RS485
IP level IP31/54
Dimension(unit) L*W*H(mm) 375*206.5*340
Weight (N.W.) 23kgs
ES5.12
Rated Voltage 51.2VDC
Rated Capacity(Ah) 100
Number of parallel 15
Rated Charge Current @RT 50A
Rated Discharge Current @RT 200A
Communication CAN/RS485
IP level IP31/IP54
Dimension(unit) L*W*H(mm) 635*480*180
Weight (N.W.) 48kgs
ES5.12
Rated Voltage 51.2VDC
Rated Capacity(Ah) 100
Number of parallel 15
Rated Charge Current @RT 50A
Rated Discharge Current @RT 100A
Communication CAN/RS485
IP level IP21
Dimension(unit) L*W*H(mm) 635*480*180
Weight (N.W.) 48kgs
ES10.24
Rated Voltage 51.2VDC
Rated Capacity(Ah) 200Ah
Number of parallel 15
Rated Charge Current @RT 50A
Rated Discharge Current @RT 200A
Communication CAN/RS485
IP level IP31/IP54
Dimension(unit) L*W*H(mm) 1014*620*216
Weight (N.W.) 95kgs
ES10.24
Rated Voltage 51.2VDC
Rated Capacity(Ah) 200Ah
Number of parallel 15
Rated Charge Current @RT 50A
Rated Discharge Current @RT 100A
Communication CAN/RS485
IP level IP21
Dimension(unit) L*W*H(mm) 1014*620*216
Weight (N.W.) 95kgs
