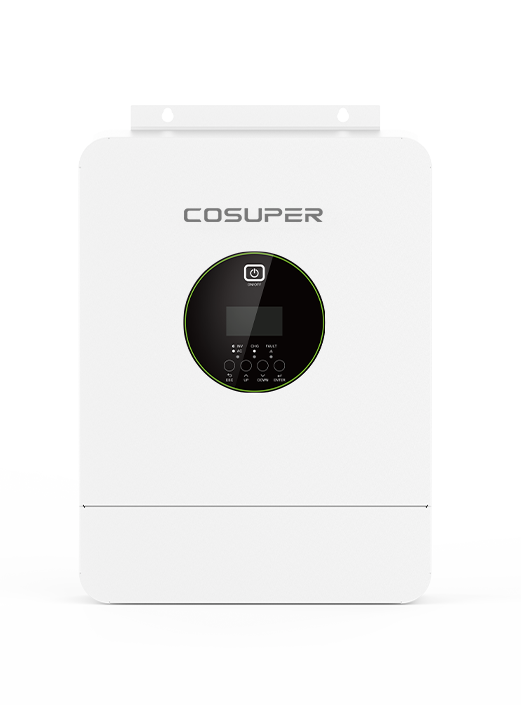

SNF Series Off Grid Solar Inverter
SNF Series
Off-Grid Solar Inverter
The SNF Series off-grid solar inverter supports high PV voltage input, battery-less startup, WiFi APP monitoring and dry contact generator start. With models from 1.5kW to 11kW and parallel operation support, it provides a flexible inverter solution for homes, farms and off-grid power applications.
Advantages
01
Supports high PV voltage input (55-450V)
02
Supports three-phase output
03
Supports battery-less startup function
04
Supports up to 12 units in parallel
05
Support dry contact starting generator
06
WIFI connection,APP monitoring
Technical Specifications
SNF Series
SNF1500-22406H
| Rated load power | 1500W |
| MAX PV Array Power | 2000W |
| MPPT input interface | 1 way |
| Battery rated voltage | 24VDC |
| Voltage | 24VDC |
| Transfer Time | 10ms/20ms |
| MAX PV Array Power | 2000W |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 60A |
| Maximum Efficiency | 99% |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~ 55℃ |
| Dimension.D*W*H(mm) | 358*295*100 |
| Net Weight (kgs) | 6 |
SNF1500-22406H
| Rated load power | 1500W |
| Parallel function | without |
| MAX PV Array Power | 2000W |
| MPPT input interface | 1 way |
| Battery rated voltage | 24VDC |
| Voltage | 24VDC |
| Transfer Time | 10ms/20ms |
| MAX PV Array Power | 2000W |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 60A |
| Maximum Efficiency | 99% |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~ 55℃ |
| Dimension.D*W*H(mm) | 358*295*100 |
| Net Weight (kgs) | 6 |
SNF-2500-22410H
| Rated load power | 2500W |
| MPPT input interface | 1 way |
| Battery rated voltage | 24VDC |
| Voltage | 230VAC |
| Transfer Time | 10ms/20ms |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 100A |
| Maximum Efficiency | 99% |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~ 55℃ |
| Dimension.D*W*H(mm) | 358*295*100 |
| Net Weight (kgs) | 6.5 |
SNF-2500-22410H
| Rated load power | 2500W |
| Parallel function | without |
| MAX PV Array Power | 3000W |
| MPPT input interface | 1 way |
| Battery rated voltage | 24VDC |
| Voltage | 230VAC |
| Transfer Time | 10ms/20ms |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 100A |
| Maximum Efficiency | 99% |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~ 55℃ |
| Dimension.D*W*H(mm) | 358*295*100 |
| Net Weight (kgs) | 6.5 |

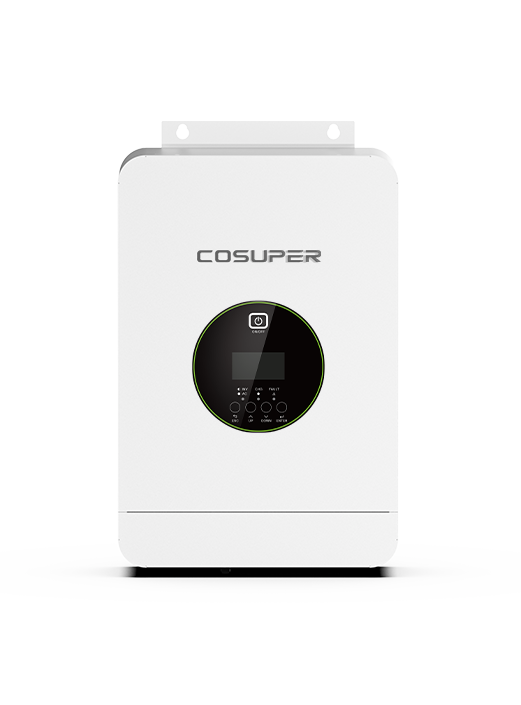

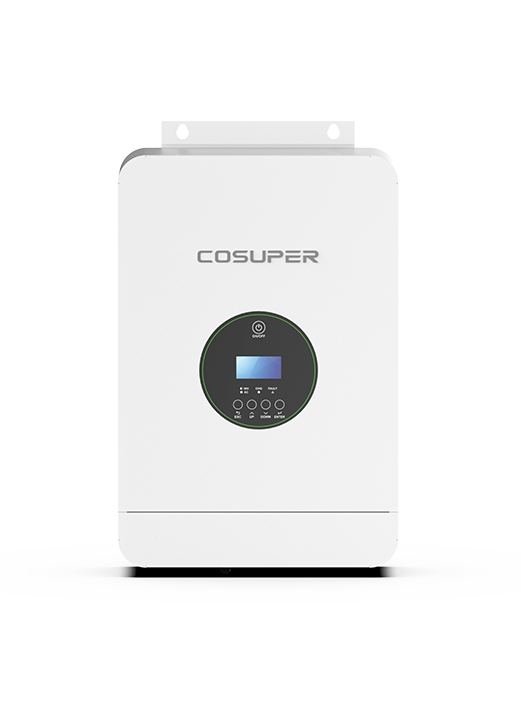

SNF3500-222410H
| Rated load power | 3500W |
| MAX PV Array Power | 4000W |
| MPPT input interface | 1way |
| Battery rated voltage | 24VDC |
| Voltage | 230VAC |
| Transfer Time | 10ms/20ms |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 100A |
| Maximum Efficiency | 99% |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~ 55℃ |
| Dimension.D*WH(mm) | 358*295*100 |
| Net Weight (kgs) | 7 |
SNF3500-222410H
| Rated load power | 3500W |
| Parallel function | without |
| MAX PV Array Power | 4000W |
| MPPT input interface | 1way |
| Battery rated voltage | 24VDC |
| Voltage | 230VAC |
| Transfer Time | 10ms/20ms |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 100A |
| Maximum Efficiency | 99% |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~ 55℃ |
| Dimension.D*WH(mm) | 358*295*100 |
| Net Weight (kgs) | 7 |

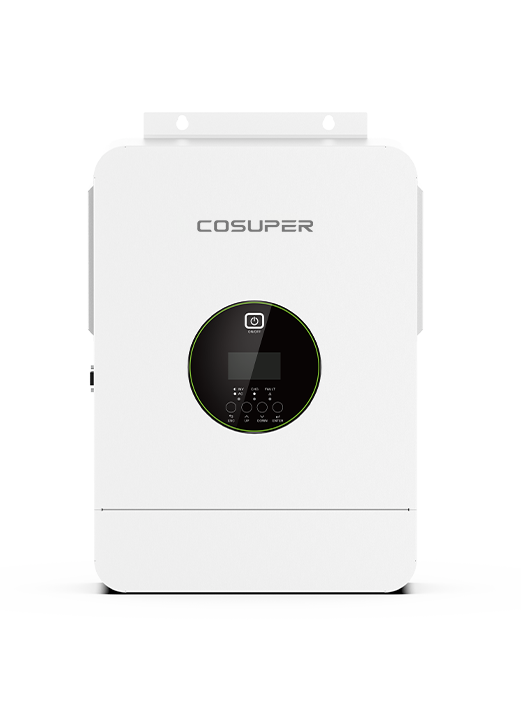

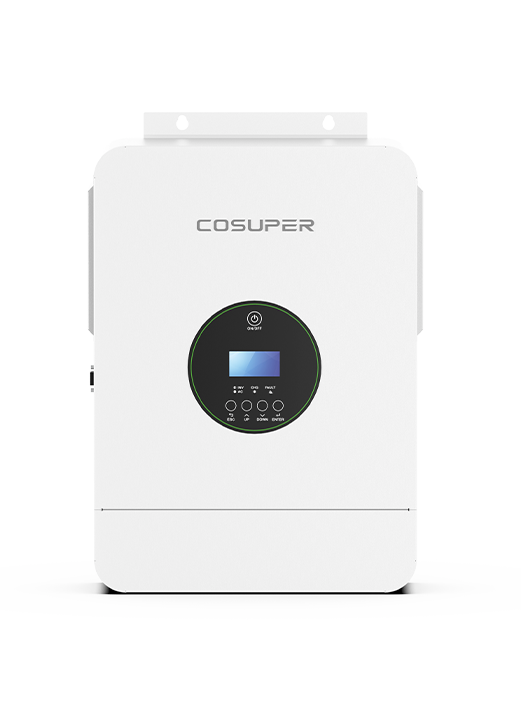

SNF6200-24812H
| Rated load power | 6200 |
| Parallel function | ≤12 |
| MAX PV Array Power | 6500W |
| MPPT input interface | 1 way |
| Battery rated voltage | 48VDC |
| Voltage | 230VAC |
| Transfer Time | 10ms/20ms |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 120A |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~55℃ |
| Dimension.D*W*H(mm) | 450*300*130 |
| Net Weight (kgs) | 9.6 |
SNF6200-24812H
| Rated load power | 6200 |
| Parallel function | ≤12 |
| MAX PV Array Power | 6500W |
| MPPT input interface | 1 way |
| Battery rated voltage | 48VDC |
| Voltage | 230VAC |
| Transfer Time | 10ms/20ms |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 120A |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~55℃ |
| Dimension.D*W*H(mm) | 450*300*130 |
| Net Weight (kgs) | 9.6 |

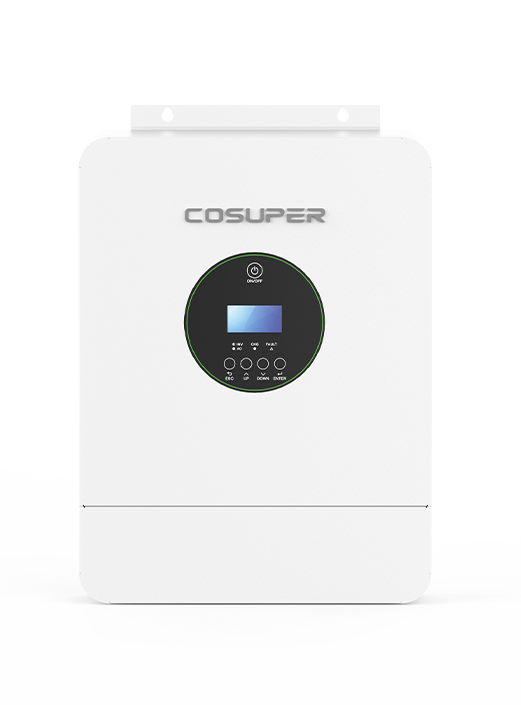

SNF11000-24816H
| Rated load power | 11000W |
| Parallel function | ≤6 |
| MAX PV Array Power | 11kW |
| MPPT input interface | 2 way |
| Battery rated voltage | 48VDC |
| Voltage | 230VAC |
| Transfer Time | 10ms/20ms |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 160A |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~55℃ |
| Dimension.D*W*H(mm) | 537*390*130 |
| Net Weight (kgs) | 15 |
SNF11000-24816H
| Rated load power | 11000W |
| Parallel function | ≤6 |
| MAX PV Array Power | 11kW |
| MPPT input interface | 2 way |
| Battery rated voltage | 48VDC |
| Voltage | 230VAC |
| Transfer Time | 10ms/20ms |
| MPPT Range@Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Charging Current | 160A |
| Communication | RS485 |
| IP level | IP21 |
| Operating Temperature | -10℃ ~55℃ |
| Dimension.D*W*H(mm) | 537*390*130 |
| Net Weight (kgs) | 15 |
