BES Series
All-in-one ESS(US)

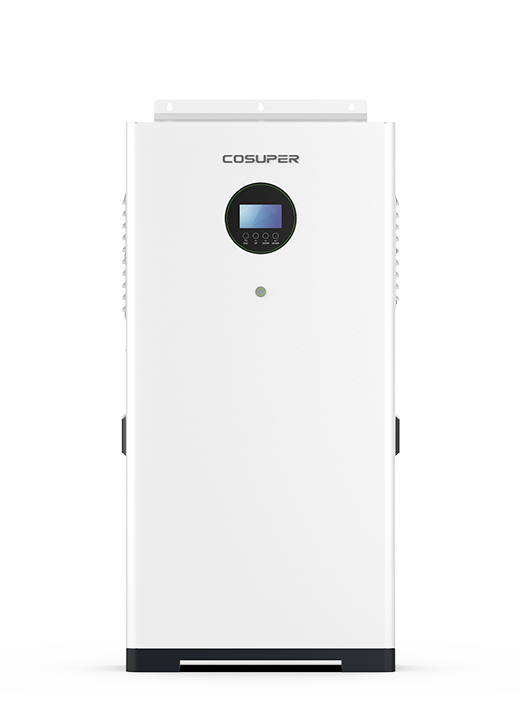

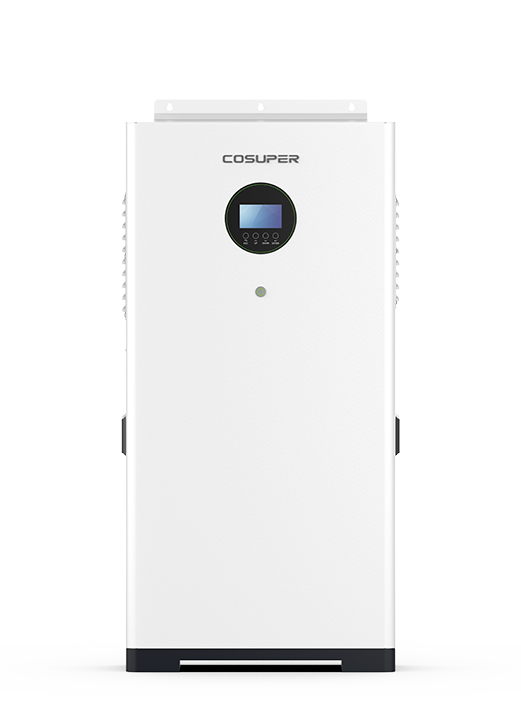

The BES7200-148S Series is an all-in-one residential energy storage system designed for home backup power, solar self-consumption and off-grid applications. It integrates a 7.2kW power output with 10kWh or 16kWh battery capacity options, supporting solar input, grid input and generator connection. With IP65 protection, smart app monitoring, pure sine wave output and multiple safety protections, it provides a reliable, safe and flexible energy solution for modern households.
BES Series

Advantages

01 All-in-One Design
02 High Solar Input Capability
03 Flexible Capacity Options
04 Reliable Backup Power
05 Smart Monitoring & Easy Management
06 Safe & Durable for Outdoor Use
BES Series

Technical Specifications

BES Series
BES7200 - 148S - 10KWH
Load power 7200W
Total Energy(Wh) 10240
Number of parallel Up to 4pcs
MPPT Voltage Range 80 - 500VDC
Maximum PV Input Current(A) 18*2
Maximum PV Input Power(W) 4500W*2
Maximum PV Charging Current(A) 160A
Rated input Voltage 110/220VAC
Output Voltage Waveform Pure Sine Wave
Peak Power(W) 14400W
Switch Time(Bypass And Inverter) 10ms
Maximum Bypass Overload Current 40A
IP level IP65
Operating Temperature -10~55℃
Dimension(W*D*H, mm) 635*200*1200
Weight (kg) 120
BES7200 - 148S - 16KWH
Load power 7200W
Total Energy(Wh) 16076
Number of parallel Up to 4pcs
MPPT Voltage Range 80 - 500VDC
Maximum PV Input Current(A) 18*2
Maximum PV Input Power(W) 4500W*2
Maximum PV Charging Current(A) 160A
Rated input Voltage 110/220VAC
Output Voltage Waveform Pure Sine Wave
Peak Power(W) 14400
Switch Time(Bypass And Inverter) 10ms
Maximum Bypass Overload Current 40A
IP level IP65
Operating Temperature -10~55℃
Dimension(W*D*H, mm) 635*200*1500
Weight (kg) 160
