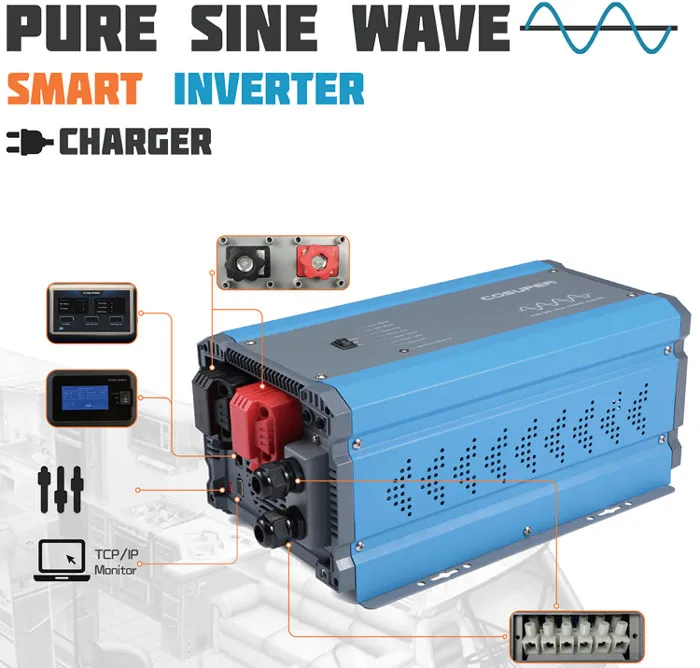

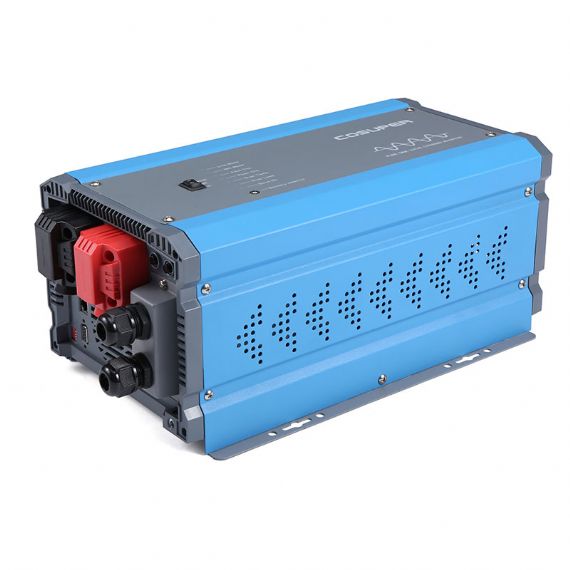

CPT Series 1000W
| Models | CPT1000 |
| Output Power | 1000W |
| Surge Power | 3000W |
| DC Input Voltage | 12VDC/24VDC |
| Output Voltage | 100/110/120VAC±5%;220/230/240VAC±3%;120/240VACSplitphase |
| Output Frequency | 50/60Hz±0.5% |
| Output Waveform | pure sinewave(THD<5%) |
| Idle consumption(Saving model/working) | 5W/10W |
| AC input frequency | 50/60Hz±0.5% |
| Efficiency | 110VAC | 85% 230VAC | 88% |
| Transfer Time | ≤8ms |
| AC Input Range | 90~135VAC/190~245VAC |
| DC Voltage Range | 10.0-16.0 / 20.0-31.0 / 42.0-62.0 VDC |
| Charge Current | 35A |
| AC Charger/Bypass | |
|---|---|
| DC output voltage | Bulk(13.0-14.9V);Absorption(14.9-15.1V); Floatcharge(13.3-13.8V)(24V*2,48V*4) |
| Overcharge protection | 15.7VDC(24V*2,48V*4) |
| Charge current |
110VAC | 35A/20A 230VAC | 35A/20A |
| Transfer time | ≤10ms |
| Input waveform | Pure sinewave(Utilitypowerorgenerator) |
| MAX bypass current | 10A |
| Control & Signal | |
| LED indicator | 7-ledforworkingmode |
| Remote control(optional) | CR10;PTM-12 |
| Dip switch | Chargecurrent;Outputfrequency;ACoutputvoltage;DC/ACpriority |
| Network function | Stand-alone,orTCP/IPoptional |
| Battery type | Lithium,Gel,AGM,Wetorcustomized |

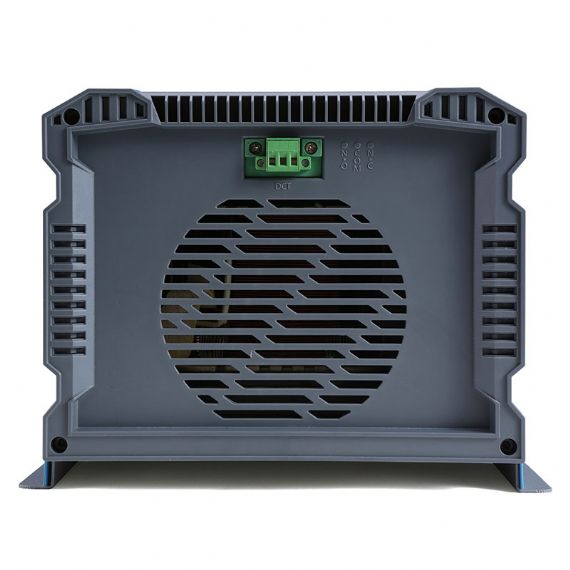

| Dry contact terminal | By relay |
| General Specification | |
| Safety | UL458,LVD(EN60950) |
| EMC | FCCpart15ClassA,CE(EN55022:2006+A1:2007) |
| Operating / Storage temp | -20-50℃/-30-70℃ |
| Working humidity | -20-90%RH |
| Weight(Kg/Ib) | 12/26 |
| Dimension(mm/inch) | 455*250*185//18*10*7 |
| Application | The vehicle, Yacht, Solarpowersystems, Portableequipment, Powertools, HomeandOfficeappliances |
