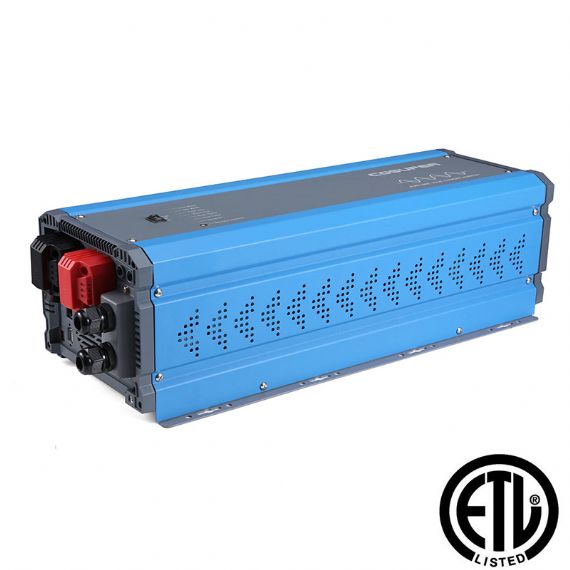

CPT series 4000W
| Models | CPT4000 | |||
| output power | 4000W | |||
| SurgePower | 12000W | |||
| DCInputVoltage | 24VDC/48VDC | |||
| OutputVoltage |
100/110/120VAC±5%;220/230/240VAC±3%; 120/240VACSplitphase |
|||
| OutputFrequency | 50/60Hz±0.5% | |||
| OutputWaveform | pure sinewave(THD<5%) | |||
|
Idleconsumption (Savingmodel/workingmodel) |
7.5W/18W | |||
| AC input frequency | 50/60Hz±0.5% | |||
| Efficiency | 110VAC | 88% | ||
| 230VAC | 89% | |||
| transfer time | <8ms | |||
| ACInputRange | 90~135VAC/190~245VAC | |||
| DCVoltageRange | 20.0-31.0/42.0-62.0VDC | |||
| ACCharger/Bypass | ||||
| DCoutputvoltage | Bulk(13.0-14.9V);Absorption(14.9-15.1V); Floatcharge(13.3-13.8V)(24V*2,48V*4) |
|||
| Overcharge protection | 15.7VDC(24V*2,48V*4) | |||
| Chargecurrent | 110VAC | 50A/30A | ||
| 230VAC | 65A/35A | |||
| Transfer time | <10ms | |||
| Inputwaveform | Puresinewave(Utilitypowerorgenerator) | |||
| MAXbypasscurrent | 40A | |||
| Control&Signal | ||||
| LEDindicator | 7-ledforworkingmode | |||
| Remotecontrol(optional) | CR10;PTM-12 | |||
| Dipswitch | Chargecurrent;Outputfrequency;ACoutputvoltage;DC/ACpriority | |||
| Networkfunction | Stand-alone,orTCP/IPoptional | |||
| Batterytype | Lithium,Gel,AGM,Wetorcustomized | |||
| Drycontactterminal | Byrelay | |||
| GeneralSpecification | ||||
| Safety | UL458,LVD(EN60950) | |||
| EMC | FCCpart15ClassA,CE(EN55022:2006+A1:2007) | |||
| Operating/Storagetemp | -20-50℃/-30-70℃ | |||
| Working humidity | -20-90%RH | |||
| Weight(Kg/Ib) | 35/77 | |||
| Dimension(mm/inch) | 650*250*185/26*10*7 | |||
| Application | Thevehicle,Yacht,Solarpowersystems,Portableequipment, Powertools,HomeandOfficeappliances |
|||
