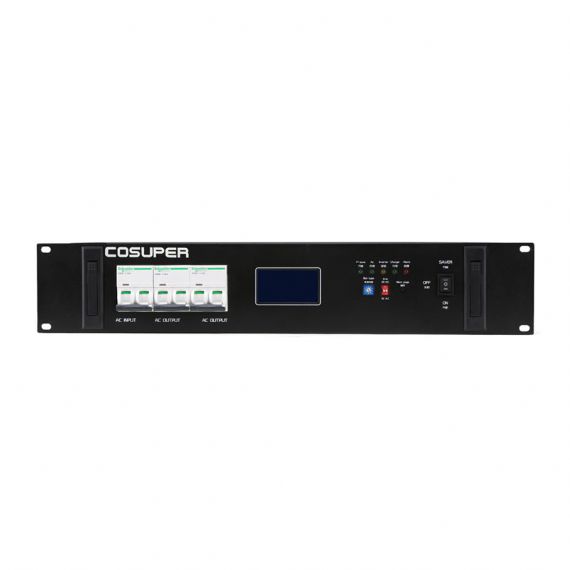

SPR series 2000w
Features
● Auto switch 4 FUN: DC to AC, AC bypass, AC charger, and UPS
● Built-in AC charger,75A max, adjustable
● Pure sine wave output, input & output fully isolation
● 5 LED display working, Digital LCD display data info
● Input: Utility AC or Generator etc
● Start Auto restart while AC is recovering (optional)
● Output AVR: stabilized AC voltage RMS (optional)
● Excellent loads with 3*rated start power
● Input polarity/UVP/OVP/OSP/OLP/OTP
● AC with Circular Electric Connector, Hot Plugging DC Connectors
● Communication Port: RS-232
Specification
| Models | SPR2000-112 | SPR2000-124 | SPR2000-148 | SPR2000-212 | SPR2000-224 | SPR2000-248 |
| output power | 2000W | |||||
| SurgePower | 6000W | |||||
| DCInputVoltage | 12VDC | 24VDC | 48VDC | 12VDC | 24VDC | 48VDC |
| OutputVoltage | 100/110/120VAC±5% | 220/230/240VAC±3% | ||||
| OutputFrequency | 50/60Hz±0.5% | |||||
| OutputWaveform | Truesinewave(THD<5%) | |||||
| power factor | 0.1~1 | |||||
| Efficiency | 88% | 89% | 91% | 89% | 90% | 93% |
| NoLoadPower | <10W(Powersavingmode) | |||||
| transfer time | <8ms | |||||
| range | 184-253VAC(176-276VAC)/154-253VAC(150-276VAC) | |||||
| AVROutput(optional) | 120VAC±10% | 230VAC±10% | ||||
| DCRange | 10.0~15.5VDC,*2for24VDC,*4for48VDC | |||||
| ChargeCurrent | 70A | 30A | 15A | 65A | 30A | 20A |
| Safety | UL458 | LVD(EN60950) | ||||
| EMC | FCCPart15ClassA | |||||
| operating temp | -20~50℃ | |||||
| WorkingHumidity | 20~90%RH | |||||
| StorageTemp | -30~70℃ | |||||
| Cooling | Automaticallycontrolledcoolingfan | |||||
| Weight(kg) | 24 | |||||
| Size(mm) | 19inch,2UStandardcabinet,482*400*132mm(L*W*H) | |||||
| Application | SpecialVechile,Yacht,airborne,Communicationfieldetc. | |||||
