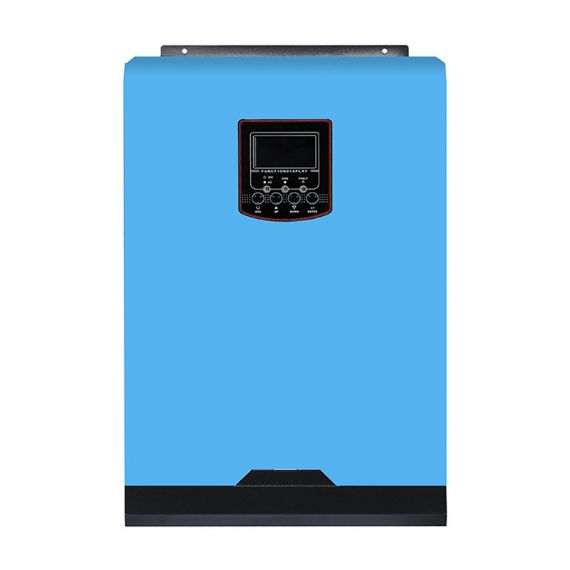

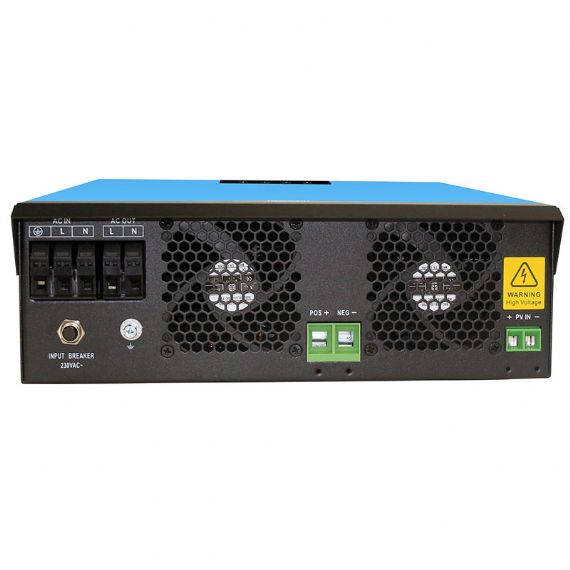

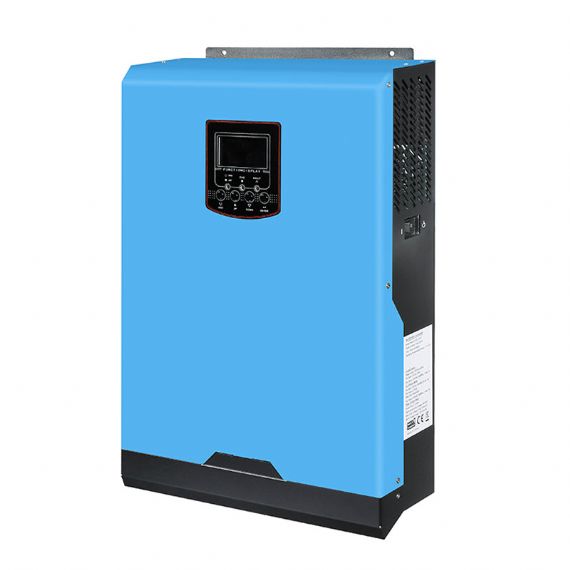

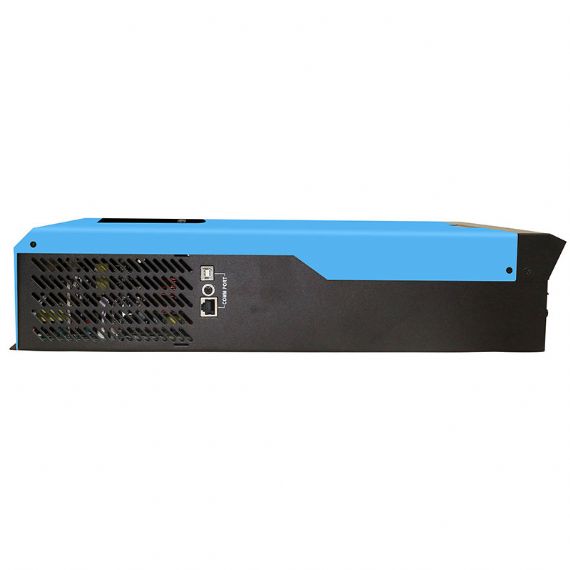

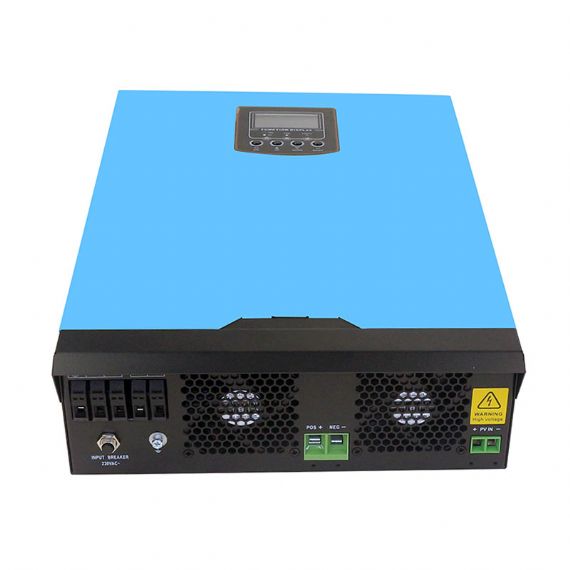

3200W/5000W Solar Hybrid Inverter

SPE-S series is an inverter combined with a solar charge controller and ac charger; it is a professional solution for the off-grid solar system. With the pure sine wave output, no matter the coffee machine, microwave, TV, satellite, printer, or other equipment, the SPE-S series inverter charger gives the perfect performance for running loads from household appliances to office devices.

This multi-function inverter combines an inverter, battery charger, and auto transfer switch functions to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current and acceptable input voltage based on different applications.

● High power factor up to 1

● Pure sine wave output for sensitive and motor loads

● Built-in 80A MPPT solar charger, MAX. 4000 watt PV input

● Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc.)

● Auto switch between Utility AC and Battery with a minimum of 10 milliseconds as UPS

● Manual switch priority power source among Solar, Utility, and Battery

● Programmable AC Under-Voltage(90~280VAC) shutdown to operate under weak shore power

● Gen starter gives boost signal to start back up generator for emergency

● Optimize battery by equalization function



Model	SPE-S3200	SPE-S5000
Battery System Voltage	24VDC	48VDC
AC INPUT
Rated AC Input Voltage	230VAC±5%
Selectable Voltage Range	170~280VAC (For PC and sensitive loads); 90~280VAC (For home appliances)
Frequency	Auto sense 50 / 60Hz
INVERTER INPUT
Rated Power	3200VA / 3200W	5000VA / 5000W
Surge Power	6400VA / 6400W	10000VA / 10000W
Waveform	Pure sine wave
AC Voltage Regulation (Batt.Mode)	230VAC ± 5%
Inverter Efficiency (Peak)	93%
Transfer Time	10ms (UPS); 20ms (APL)
BATTERY
Rated Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
MPPT Ver. CHARGING INFO
PV Open Voltage	500VDC	500VDC
Nomia PV Input Volt Range	120~450VDC	120~450VDC
(MMPT) Solar Charge Current	80A	80A
(MMPT) Maximum Solar Input	4000W	4000W
Maximum AC Charge Current	60A	60A
(MMPT ver.) Solar Current + AC Current	80A	80A
General Parameter
Operating / Storage Temp	0~55℃ / -15-60℃
Working Humidity	5% to 95% relative humidity (Non-condensing)
Cooling	Auto fan cooling
Dimensions (D*W*H) (mm)	100*300*440
Net Weight(kg)	9	10

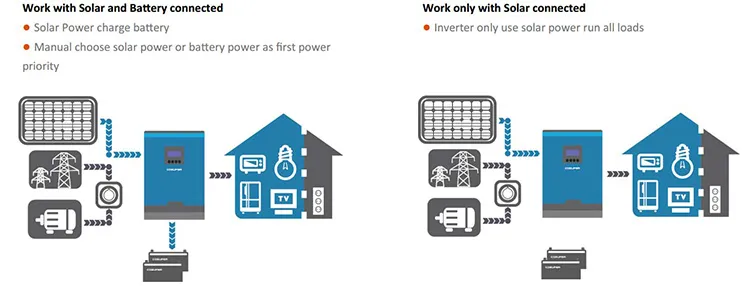

Working Mode
