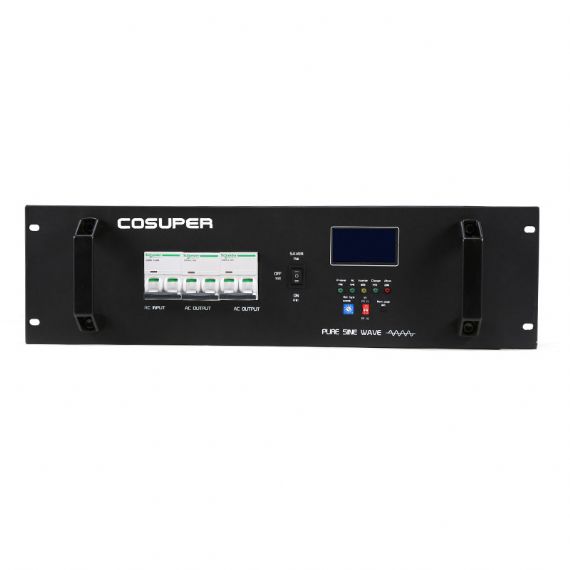

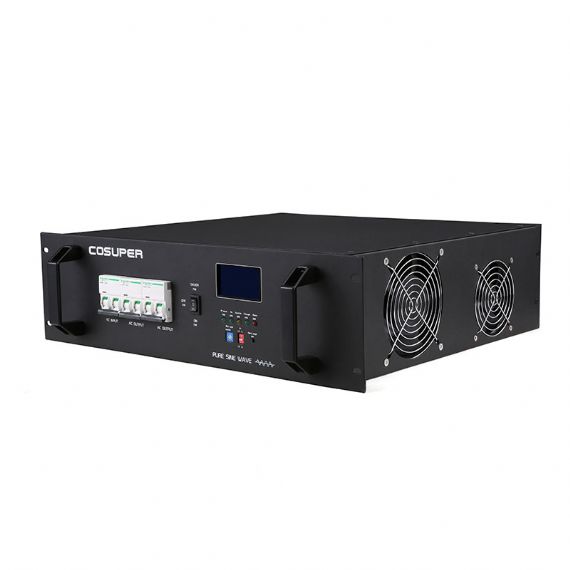

SPR series 5000W
Features
● Auto switch 4 FUN: DC to AC, AC bypass, AC charger, and UPS
● Built-in AC charger,75A max, adjustable
● Pure sine wave output, input & output fully isolation
● 5 LED display working, Digital LCD display data info
● Input: Utility AC or Generator etc
● Start Auto restart while AC is recovering (optional)
● Output AVR: stabilized AC voltage RMS (optional)
● Excellent loads with 3*rated start power
● Input polarity/UVP/OVP/OSP/OLP/OTP

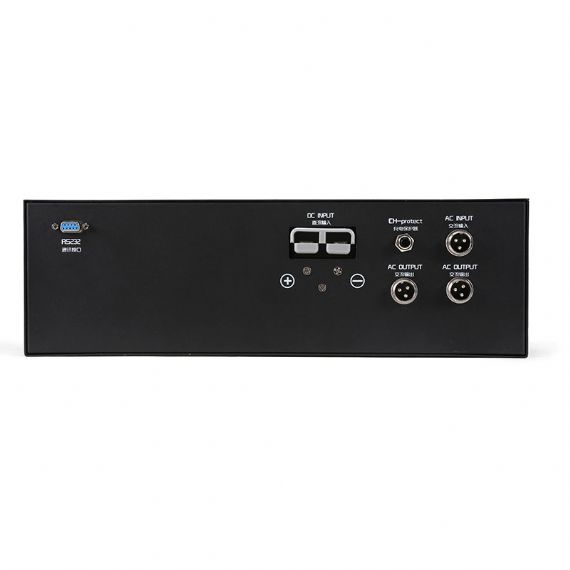

● AC with Circular Electric Connector, Hot Plugging DC Connectors
● Communication Port: RS-232
Specification
| Models | SPR5000-124 | SPR5000-148 | SPR5000-224 | SPR5000-248 |
| OutputPower | 5000W | |||
| SurgePower | 15000W | |||
| DCInputVoltage | 24VDC | 48VDC | 24VDC | 48VDC |
| OutputVoltage | 100/110/120VAC±5% | 220/230/240VAC±3% | ||
| OutputFrequency | 50/60Hz±0.5% | |||
| OutputWaveform | Truesinewave(THD<5%) | |||
| PowerFactor | 0.1~1 | |||
| Efficiency | 89% | 91% | 90% | 93% |
| NoLoadPower | <10W(Powersavingmode) | |||
| TransferTime | <8ms | |||
| ACRange | 184-253VAC(176-276VAC)/154-253VAC(150-276VAC) | |||
| AVROutput(optional) | 120VAC±10% | 230VAC±10% | ||
| DCRange | 10.0~15.5VDC,*2for24VDC,*4for48VDC | |||
| ChargeCurrent | 70A | 35A | 70A | 40A |
| Safety | UL458 | LVD(EN60950) | ||
| EMC | FCCPart15ClassA | |||
| OperatingTemp | -20~50℃ | |||
| WorkingHumidity | 20~90%RH | |||
| StorageTemp | -30~70℃ | |||
| Cooling | Automaticallycontrolledcoolingfan | |||
| Weight(kg) | 40 | |||
| Size(mm) | 19inch,2UStandardcabinet,482*450*176mm(L*W*H) | |||
| Application | SpecialVechile,Yacht,airborne,Communicationfieldetc. | |||
