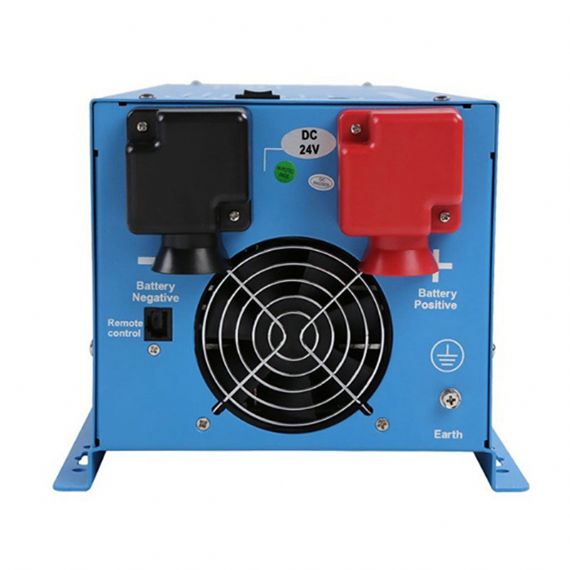

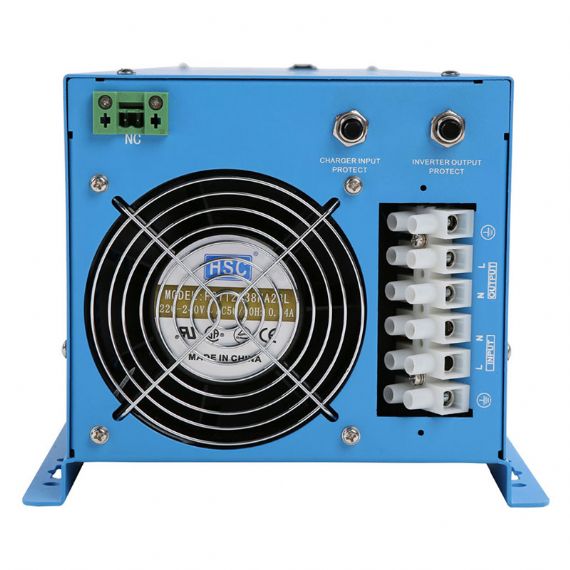

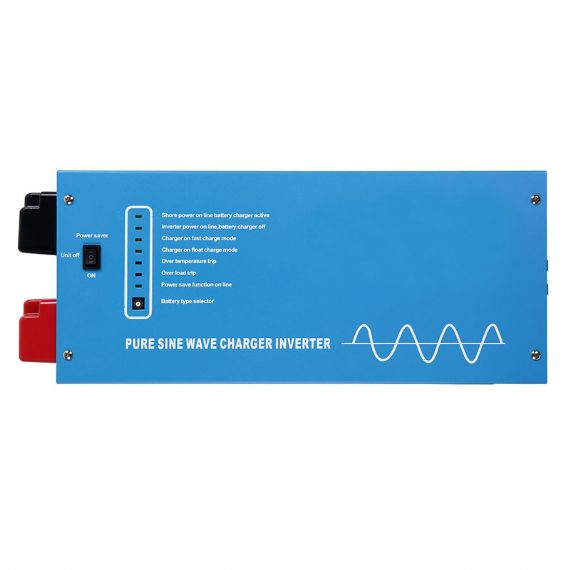

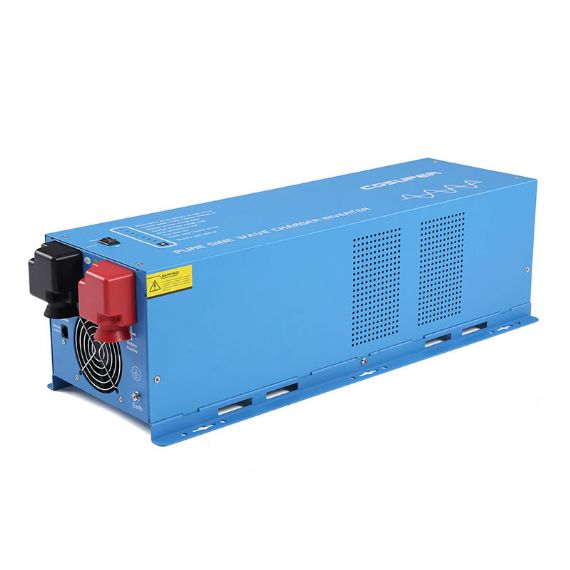

SPT 6000W
| Models | SPT6000-124 | SPT6000-148 | SPT6000-224 | SPT6000-248 |
| output power | 6000W | |||
| SurgePower | 18000W | |||
| DCInputVoltage | 24VDC | 48VDC | 24VDC | 48VDC |
| OutputVoltage | 100/110/120VAC±5% | 220/230/240VAC±3% | ||
| OutputFrequency | 50/60Hz±0.5% | |||
| OutputWaveform | Truesinewave(THD<5%) | |||
| power factor | 0.1~1 | |||
| Efficiency | 86% | 88% | 87% | 90% |
| NoLoadPower | <105W(Powersavingmode) | |||
| transfer time | <8ms | |||
| arrange | 90~135VAC/190~245VAC | |||
| voltage range | 20.0~31.0VDC | 42.0~60.0VDC | 20.0~31.0VDC | 42.0~60.0VDC |
| ChargeCurrent | 75A | 45A | 75A | 50A |
| FaultIndication | LEDRed | |||
| RemoteControl | RJ45:PTM-10orPTM-12 | |||
| Safety | UL458 | LVD(EN60950) | ||
| EMC | FCCPart15ClassA | CE(EN55022:2006+A1:2007) | ||
| operating temp | -20~50°C | |||
| WorkingHumidity | 20~90%RH | |||
| StorageTemp | -30~70°C | |||
| Cooling | Automaticallycontrolledcoolingfan | |||
| Weight(kg) | 36 | |||
| Size(mm) | 651*220*180(L*W*H) | |||
| Application |
Vehicle, Yacht,Solarpowersystems, Portableequipments , Powertools,HomeandOfficeappliances |
|||
