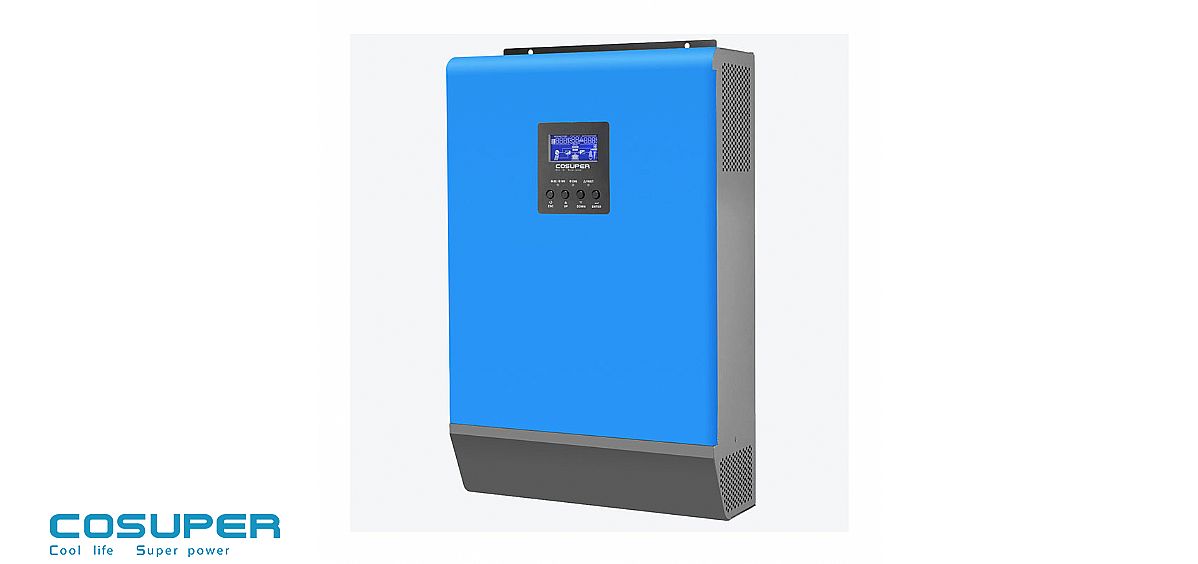

1KVA / 2KVA Hybrid Solar Inverter

SPE Series 1KVA / 2KVA

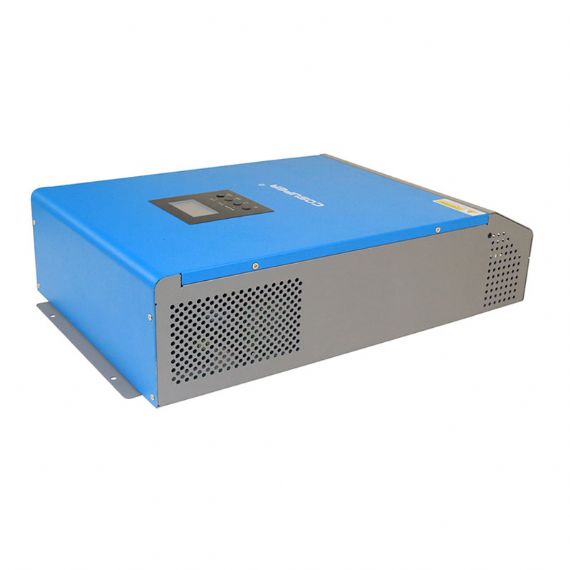

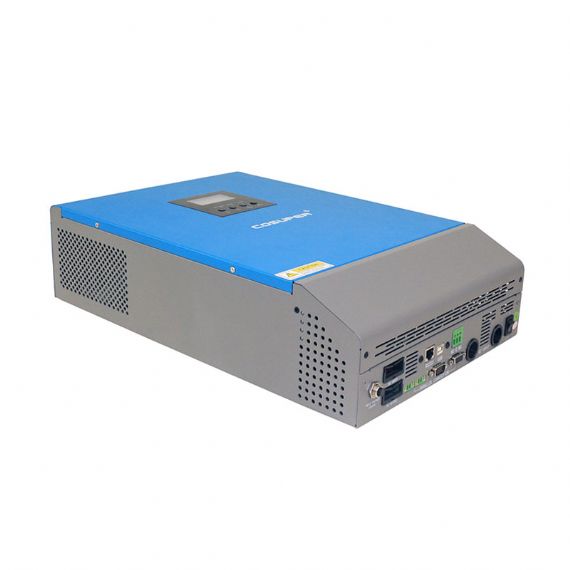

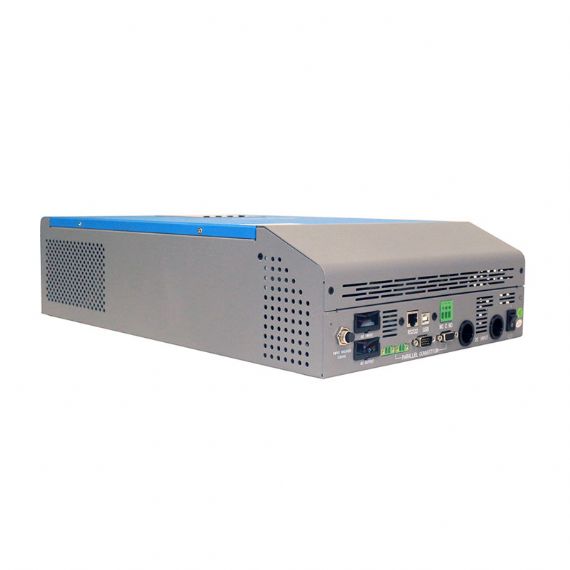

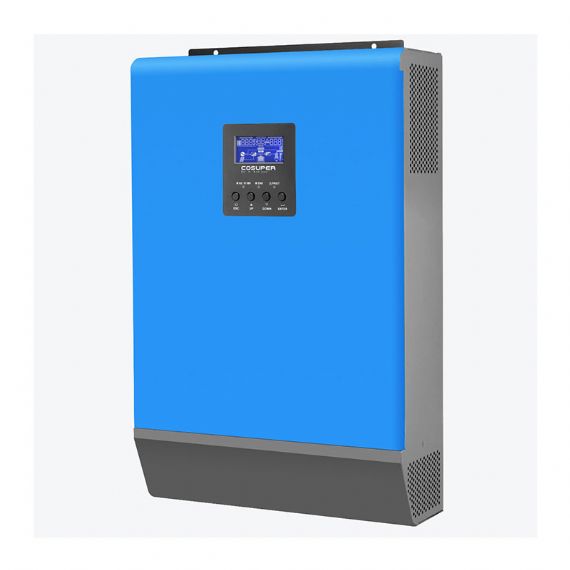

1KVA / 2KVA Hybrid Solar Inverter - SPE1K2Kva

Sample Title

Sample Text

1KVA / 2KVA Hybrid Solar Inverter - SPE1K2Kva

Sample Title

Sample Text

1KVA / 2KVA Hybrid Solar Inverter - SPE1K2Kva

Sample Title

Sample Text

1KVA / 2KVA Hybrid Solar Inverter - SPE1K2Kva

Sample Title

Sample Text

  1. 1KVA / 2KVA Hybrid Solar Inverter - SPE1K2Kva
  2. 1KVA / 2KVA Hybrid Solar Inverter - SPE1K2Kva
  3. 1KVA / 2KVA Hybrid Solar Inverter - SPE1K2Kva
  4. 1KVA / 2KVA Hybrid Solar Inverter - SPE1K2Kva
Ref: SPE1K2Kva
Cosuper 1 kVA / 2 kVA hybrid solar inverter range gives you the power to run small appliances such as TVs, microwaves, and hot plates off-grid using photovoltaic inputs and battery inputs interchangeably.

1. Each hybrid solar inverter comes with a PWM / MPPT solar charge controller (PWM 50A, MPPT 25A).
2. Supports DC voltages: 12 V 24 V 48 V, and AC voltages: 220 V / 230 V / 240 v.
3. Smart LCD display for viewing settings (Working modes, Charge Current, Charge Voltage, etc.)
4. Supports USB, RS485 monitoring function with specific software.
Would you like to know more?
Wholesale Enquiry

Features

The SPE series 1 kVA / 2 kVA hybrid solar inverter combines a solar charge controller and ac charger for off-grid solar systems. With the pure sine wave output, the SPE series inverter charger performs perfectly when running loads from household appliances and office devices like coffee machines, microwaves, TVs, satellites, printers, or other equipment.

This multi-function solar inverter combines functions of inverter, battery charger, and auto transfer switch to offer uninterruptible hybrid power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, and acceptable input voltage based on different applications.

Product Features:
● Stack parallel and three-phase support with up to 6 units (Available for 4 kVA/5 kVA only)
● Pure sine wave output for sensitive and motor loads
● Built-in PWM 50 A solar or MPPT 60 A solar charger
● Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc.)
● Auto switch between Utility AC and Battery with a minimum of 10 milliseconds as UPS
● Programmable AC Under-Voltage (90~280 VAC) shutdown to operate under weak shore power
● Gen starter gives boost signal to start back up generator for emergency
● Cold start function
● Support USB, RS485 monitoring function with specific software

1kva inverter specification:
Rated power: 1000va / 800w
Surge power: 2000va / 1600w
waveform: pure sine wave
AC Output voltage: 220v/230v/240v+/-3%
Efficiency(peak): 93%
Transfer Time: 10ms(UPS), 20ms(APL)
PWM solar charge current: 50A
MPPT solar charge current: 25A
Weight: 5-8kg

2kva inverter specification:
Rated power: 2000va / 1600w
Surge power: 4000va / 3200w
waveform: pure sine wave
AC Output voltage: 220v/230v/240v+/-3%
Efficiency(peak): 93%
Transfer Time: 10ms(UPS), 20ms(APL)
PWM solar charge current: 50A
MPPT solar charge current: 25A
Weight: 6-8kg

*Parallel-Use Support
SPE supports Max. 6 units for stack use to get Max. 30KVA(24KW) total output power. Solar Hybrid Inverter

*Three-Phase Support
SPE supports Max. 6 units in a three-phase connection to get Max. 30KVA(24KW) three-phase output power.
Solar Hybrid Inverter

SPE series model specification
Model SPE1000 SPE2000 SPE3000 SPE4000 SPE5000
(PWM ver.) Battery System Voltage 12VDC 24VDC 48VDC
(MPPT ver.) Battery System Voltage 24VDC / 48VDC 48VDC
INVERTER OUTPUT
Rated Power 1000VA/800W 2000VA/1000W 3000VA/2400W 4000VA/3200W 5000VA/4000W
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Waveform Pure sine wave
AC Voltage Regulation (Batt.Mode) 220VAC~240VAC
Output Voltage 220/230/240 VAC±3%
Inverter Efficiency (Peak) 93%
Transfer Time 10ms(UPS), 20ms (APL)
BATTERY
Rated voltage 12VDC / 24VDC for PWM Ver.
24VDC / 48VDC for MPPT Ver.		 48VDC
Floating Charge Voltage 13.5VDC / 27VDC / 54VDC 54VDC
Overcharge Protection 15VDC / 30VDC / 60VDC 60VDC
PWM Ver. CHARGING INFO
(PWM ver.) PV Open Voltage 40VDC for 12V Batt; 80VDC for 24V Batt 105VDC
Standby Power Consumption 1W 2W 2W
(PWM) Solar Charge Current 50A
(PWM) Maximum Solar Input 600W 1200W 2400W
Maximum AC Charge Current 20A 30A 60A
(PWM ver.)Joint Charge Current 70A 80A 110A
MPPT Ver. CHARGING INFO
(MPPT ver.) PV Open Voltage 75VDC for 24V Batt; 75VDC for 4V Batt 75VDC for 24V 102VDC for 48V 145V
Standby Power Consumption 2W
(MPPT) Solar Charge Current 25A for 24V Batt; 20A for 48V Batt 25A for 24V
18A for 48V		 60A
(MPPT) Maximum Solar Input 600W for 24V; 900W for 48V 3000W
Maximum AC Charge Current 30A for 24V Batt; 60A for 48V Batt 60A
(MPPT ver.)Solar Current + AC Current 55A for 24V Batt; 80A for 48V Batt 55A for 24V Batt
78A for 48V Batt		 120A
General parameter
Operating / Storage Temp 0~55℃ / -15-60℃
Working Humidity 5% to 95% relative humidity (Non-condensing)
Cooling Auto fan cooling
(PWM ver.)Dimensions (D×W×H) (mm) 95 x 240 x 316 100 x 272 x 355 120 x 295 x 468
(MPPT ver.)Dimensions (D×W×H) (mm) 128 x 272 x 355
(PWM ver.)Net Weight(kg) 5 6.4 6.9 9.8 9.8
(MPPT ver.)Net Weight(kg) 7.4 7.6 8 12.5 13.5
