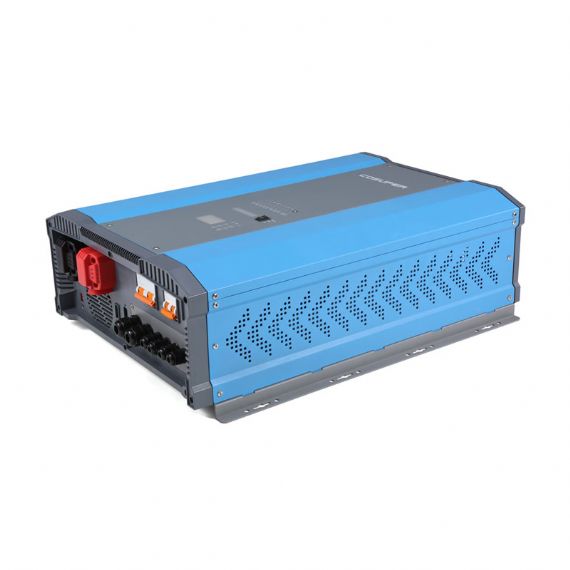

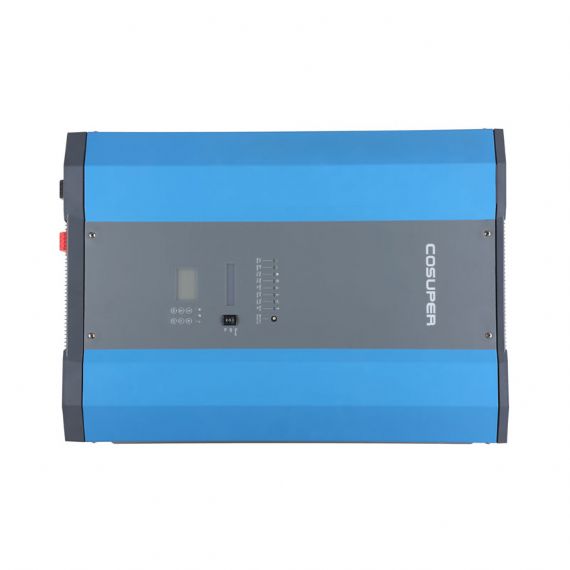

CPS series 6000W
Features
● Professional solution for Off-Grid solar system
● Auto switch 4 FUN: DC to AC, AC bypass, AC charger, and UPS
● Real MPPT solar charge controller. MAX PV volt 150VDC. MAX PV power 4680W
● DIP Switches: Low Battery, AC Input Range, Power Saver, Solar/Utility AC Priority
● Efficient up 3~5% than traditional power frequency inverter
● Visualized and detailed info on solar charging and inverting
● RJ45 Remote control and RS232 network communication interface (optional)
● Excellent load capacity: MAX 3*rated power.
● Pure sine wave output, input & output fully isolation
● Supply power via hybrid power (grid power or diesel) compatibly

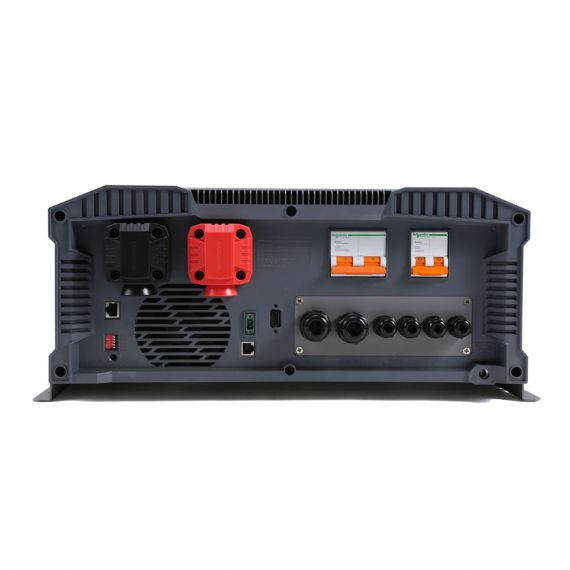

● Built-in relay and AC/DC breaker
● Advanced microprocessor control
● Input polarity/UVP/OVP/OSP/OLP/OTP
● Attractive appearance with V0 fire-protection rated plastic materials
Specification
| Item | Models | CPS6000-1486M | CPS6000-2246M | CPS6000-2484/6M | CPS6000-2489M |
| AC Output | Output Power | 6000W | |||
| SurgePower | 18000W(≤2S) | ||||
| OutputFrequency | 50/60Hz±0.5% | ||||
| OutputWaveform | Truesinewave（THD<3%） | ||||
| P·FAllowed | COSθ-90°~COSθ+90° | ||||
| Efficiency | 86% | 88% | 87% | 90% | |
| DCINPUT | Input Voltage | 48VDC | 24VDC | 48VDC | 48VDC |
| Voltage Range | 20.0~31.0VDC,*2for48VDC/21.0~32.0VDC,*2for48VDC | ||||
| FaultIndication | LEDRedandBuzzerAlarm | ||||
| Remote Control | RS-232/RJ45(Optional) | ||||
| AC Charger | AC Range | 184-253VAC/154-253VAC | |||
| 100-135VAC/90-135VAC | |||||
| FastVoltage | 14.0~15.1V(*2for24vdc,*4for48vdc) | ||||
| FloatVoltage | 13.3-13.8V(*2for24vdc,*4for48vdc) | ||||
| OverchargeProtection | 15.7Vfor12V(*2for24vdc,*4for48vdc) | ||||
| ChargeCurrent | 25A | 40A | 25A | 25A | |
| MPPTSolarCharger(optional) | solar panel Max | 3120W | 2340W/3120W | 1260W/1680W | 2340W/3120W |
| RatedVoltage | 12V/24V248VDCAuto | ||||
| Ratedchargecurrent | 60A | 45A/60A | 45A/60A | 45A/60A | |
| DCLoadCurrent | 15A(MAX) | ||||
| InputPVVoltage | 150VDC(MAX) | ||||
| Temp.compensation | -13.2mv/℃(*2for24vdc,*4for48vdc) | ||||
| Bypass | Transfer Time | <8ms | |||
| InputVot.waveform | UtilityACorGenerator(Sinewave) | ||||
| Maxbypasscurrent | 80A/40A | ||||
| Others | WorkingHumidity | 20-90%RH | |||
| SafetyandEMI | UL458 | LVD(EN60950) | |||
| Working temp. | -20~50℃ | ||||
| StorageTemp | -30~70℃ | ||||
| Cooling | Temperaturecontrolledcoolingfan | ||||
| Size(mm) | 650*505*210(L*W*H) | ||||
| Weight(kg) | 60 | 63 | |||
